Hi, has anyone had any success in configuring inbound and outbound SMS, with Telnyx or Twilio, using the procedures in the link below?
docs.fusionpbx.com
Thank you.
SMS FusionPBX 5.3 | Telnyx | Twilio | help
- Thread starter adrnandes
- Start date
-
- Tags
- sms telnyx sms twilio sms
Hi,
Inbound SMS is arriving on my Groundwire Softphone, but it seems to be being sent to all extensions, instead of just the extension with the correct DID specified in the Inbound routes.
My web hook (https://my-fusionpbx-domain/app/messages/index.php) has been configured correctly in the Telnyx dashboard.
Outbound SMS, does not work at all.

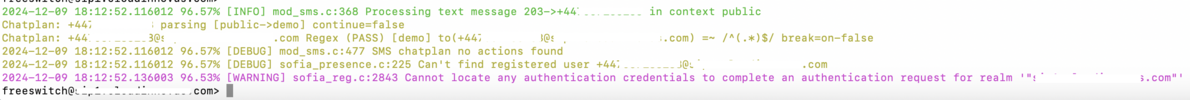

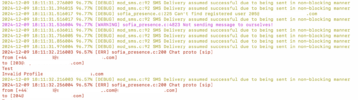

I have attached the screenshots in case anyone can please give me some suggestions.
Thank you.
Inbound SMS is arriving on my Groundwire Softphone, but it seems to be being sent to all extensions, instead of just the extension with the correct DID specified in the Inbound routes.
My web hook (https://my-fusionpbx-domain/app/messages/index.php) has been configured correctly in the Telnyx dashboard.
Outbound SMS, does not work at all.
I have attached the screenshots in case anyone can please give me some suggestions.
Thank you.
Attachments
Did you create an SMS Destination that matches the Telnyx DID and points to your Groundwire extension?
Hi dcitelecom,
When I created the Destination with the DID corresponding to the Groundwire extension, I selected the "voice" and "txt" boxes, so the inbound route was created automatically, but I didn't see anything specific to SMS anywhere.
Please see the attached printout.
Thank you very much.
When I created the Destination with the DID corresponding to the Groundwire extension, I selected the "voice" and "txt" boxes, so the inbound route was created automatically, but I didn't see anything specific to SMS anywhere.
Please see the attached printout.
Thank you very much.
Attachments
Thanks for your help, but in my version 5.3 I don't have this option.
I only have the "message" option but it only works as a message sending field.
I only have the "message" option but it only works as a message sending field.
Attachments
@dcitelecom is talking about the SMS app, whereas @adrnandes is using the Messages app. SMS app is the old way of doing it and is not maintained anymore (I think, hasn't got any commits in over a year)
I am running an older, stable version of Fusionpbx. I haven't upgraded in a while because every time I do, it breaks something or the new version isn't backwards compatible with existing settings. I can't even count the number of times I upgraded a stable version and after the upgrade, my previously ok settings were now wrong and causing all sorts of errors.
As such, I don't know the new Messages app but the SMS app can be installed from here and works without any issues for me. https://github.com/fusionpbx/fusionpbx-apps/tree/master/sms
As such, I don't know the new Messages app but the SMS app can be installed from here and works without any issues for me. https://github.com/fusionpbx/fusionpbx-apps/tree/master/sms
Hi @voipBull, and @dcitelecom, thanks for the help and information, now it makes sense.
I will check this method "https://github.com/fusionpbx/fusionpbx-apps/tree/master/sms" and do some tests.
Thank you very much
I will check this method "https://github.com/fusionpbx/fusionpbx-apps/tree/master/sms" and do some tests.
Thank you very much
If Messages is the new way of sending and receiving SMS, maybe continue your efforts there. Is anyone using the new Messages app for SMS?
I guess the only recourse here is to interpret the PHP code:
github.com
It sure would be nice to have a better understanding of the messages app architecture. It's not clear, and community's issues here prove it.
On my setup, I have 5.2 and configured Messages app and Telnyx provider. Message is delivered to FusionPBX, and it shows in the Messages Log
mypbx.blah/app/messages/message_logs.php?show=all
But it does not show up on the domains message log and Groundwire registered extension does not get notified.
This is SIP SIMPLE. But it's not simple...
fusionpbx-app-messages/index.php at main · fusionpbx/fusionpbx-app-messages
Contribute to fusionpbx/fusionpbx-app-messages development by creating an account on GitHub.
github.com
It sure would be nice to have a better understanding of the messages app architecture. It's not clear, and community's issues here prove it.
On my setup, I have 5.2 and configured Messages app and Telnyx provider. Message is delivered to FusionPBX, and it shows in the Messages Log
mypbx.blah/app/messages/message_logs.php?show=all
But it does not show up on the domains message log and Groundwire registered extension does not get notified.
This is SIP SIMPLE. But it's not simple...
Hi @pbxguru,
Thank you also for your comment.
In my case, with Telnyx, I am able to receive the SMS on Groundwire, but it is going to all extensions, as if there was a specific inbound route missing for the SMS, to a specific extension number.
In the Portsip app, the message does not appear, but it emits a notification sound.
The problem is that I did a lot of tests but I was not able to find in the dashboard where I could create this route.
In the case of Twilio, I also had no success for inbound or outbound.
An important recommendation to be able to receive the SMS,In addition to inserting the web hook into the Telnyx portal, something that made a difference was keeping the "outbound caller id number" in the extension.
I will also do some tests with SignalWire soon to try to have some success.
docs.fusionpbx.com
Web hook: https://your-domain/app/messages/index.php
Thank you also for your comment.
In my case, with Telnyx, I am able to receive the SMS on Groundwire, but it is going to all extensions, as if there was a specific inbound route missing for the SMS, to a specific extension number.
In the Portsip app, the message does not appear, but it emits a notification sound.
The problem is that I did a lot of tests but I was not able to find in the dashboard where I could create this route.
In the case of Twilio, I also had no success for inbound or outbound.
An important recommendation to be able to receive the SMS,In addition to inserting the web hook into the Telnyx portal, something that made a difference was keeping the "outbound caller id number" in the extension.
I will also do some tests with SignalWire soon to try to have some success.
Messages — FusionPBX Docs documentation
Interesting. Are all the extensions on same domain? What about extensions registered on different domains? Do the extensions have unique DIDs assigned? Or could it be that all users have access to all extensions?
Regardless, it would be important to replicate your scenario because it could be a security vulnerability. Inbound SMS traffic should only be destined to a single extension. I'm not aware of a broadcast method for SIP messages.
